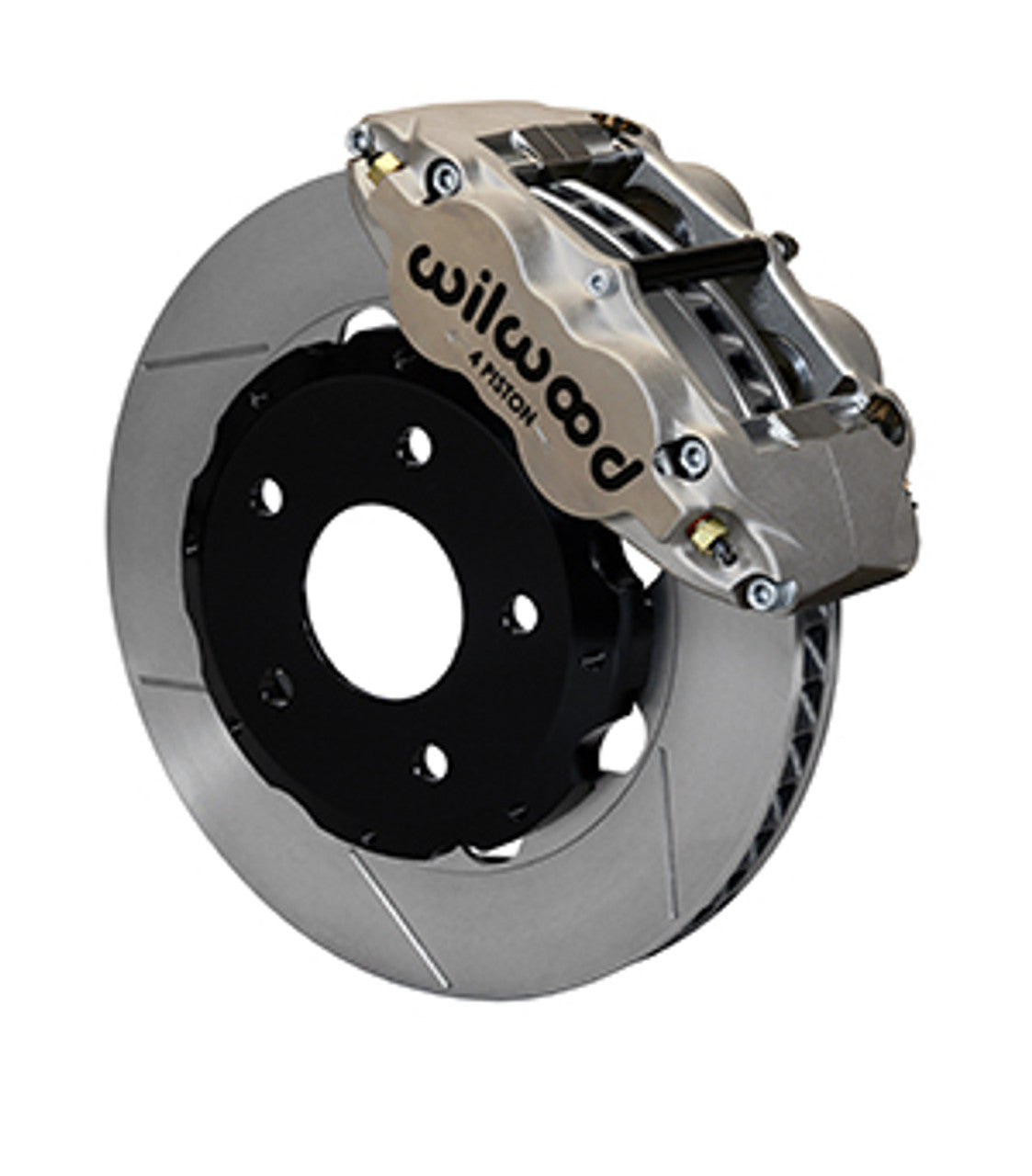

Wilwood Forged Superlite 4R Big Brake Front Brake Kit Race 12.19" Slotted Nickel (93-02 Camaro) 140-10691

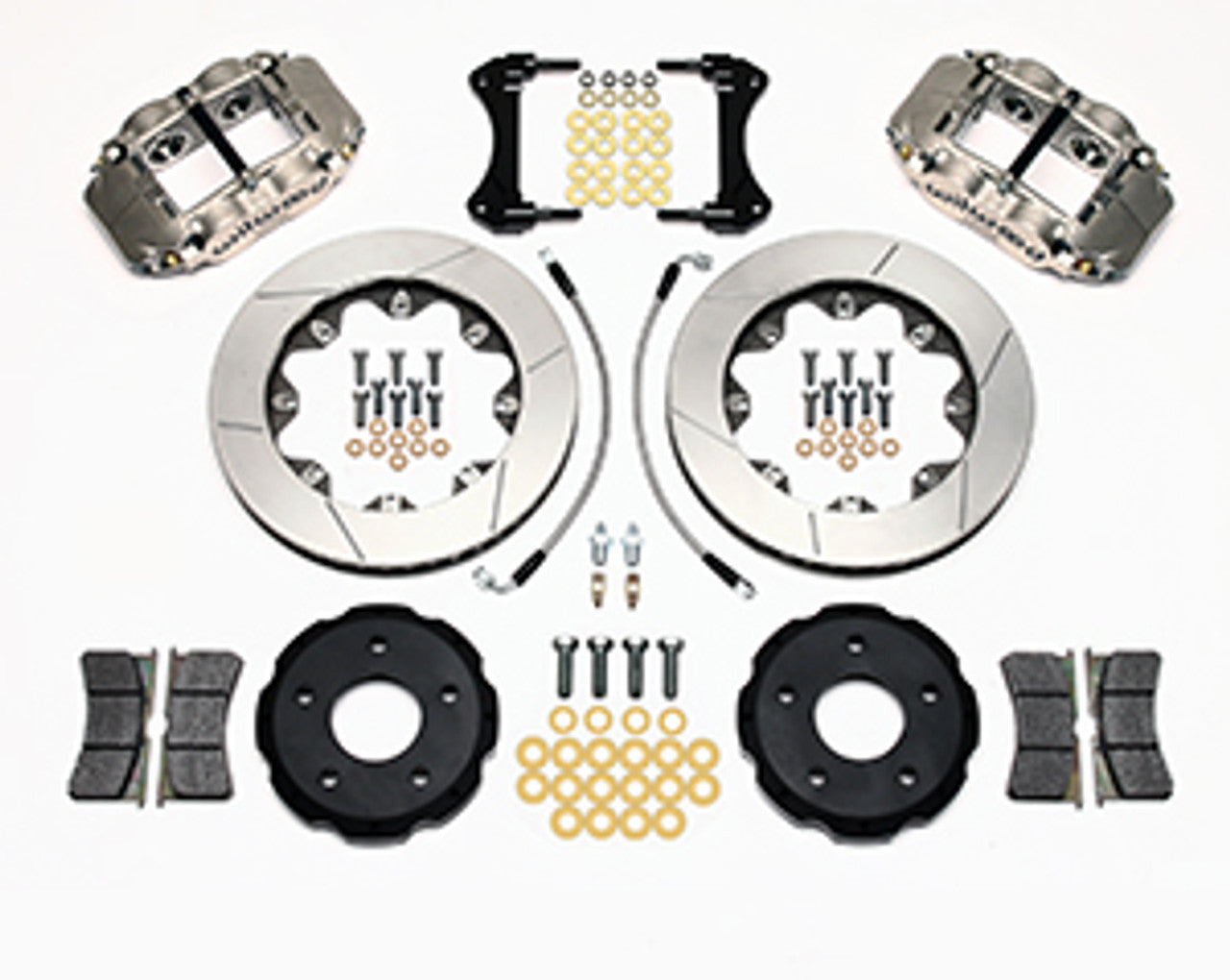

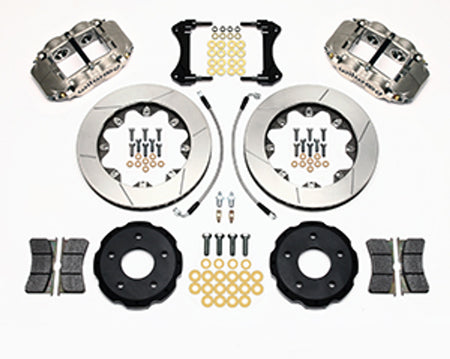

This kit is configured for dedicated road racing on 1998-02 Camaros and Firebirds, or any 1993-97 model that has been upgraded with the 1998-02 spindles. Four piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock pistons and internal knock-back damping springs, are volume matched for system compatibility with either the factory power brake booster and master cylinder, or a manual balance bar style pedal with appropriately sized master cylinders. The kit includes two-piece 12.19” diameter Spec 37 alloy GT series directional vane rotors to comply with SCCA American Sedan rules, cross-overs into the NASA pony car categories, or any other sanction racing with 16” or 17” wheels. Unsprung and rotating weight are minimized by mounting the rotors to the OE hubs with forged aluminum hats. Each kit includes high-temp Wilwood race compound pads, machined billet radial mount caliper brackets, stainless steel braided flexlines, and all premium grade hardware.

Kit Summary

Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4
Rotor Diameter: 12.19
Min Wheel Diameter Req'd: 15

Notes:
• Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
• Brake Line Kit 220-6746 is included in this brake kit.

Application
• Chevrolet Camaro 1998-2002 Disc Brake Rear
• Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Disc Rear
• Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Drum Rear
