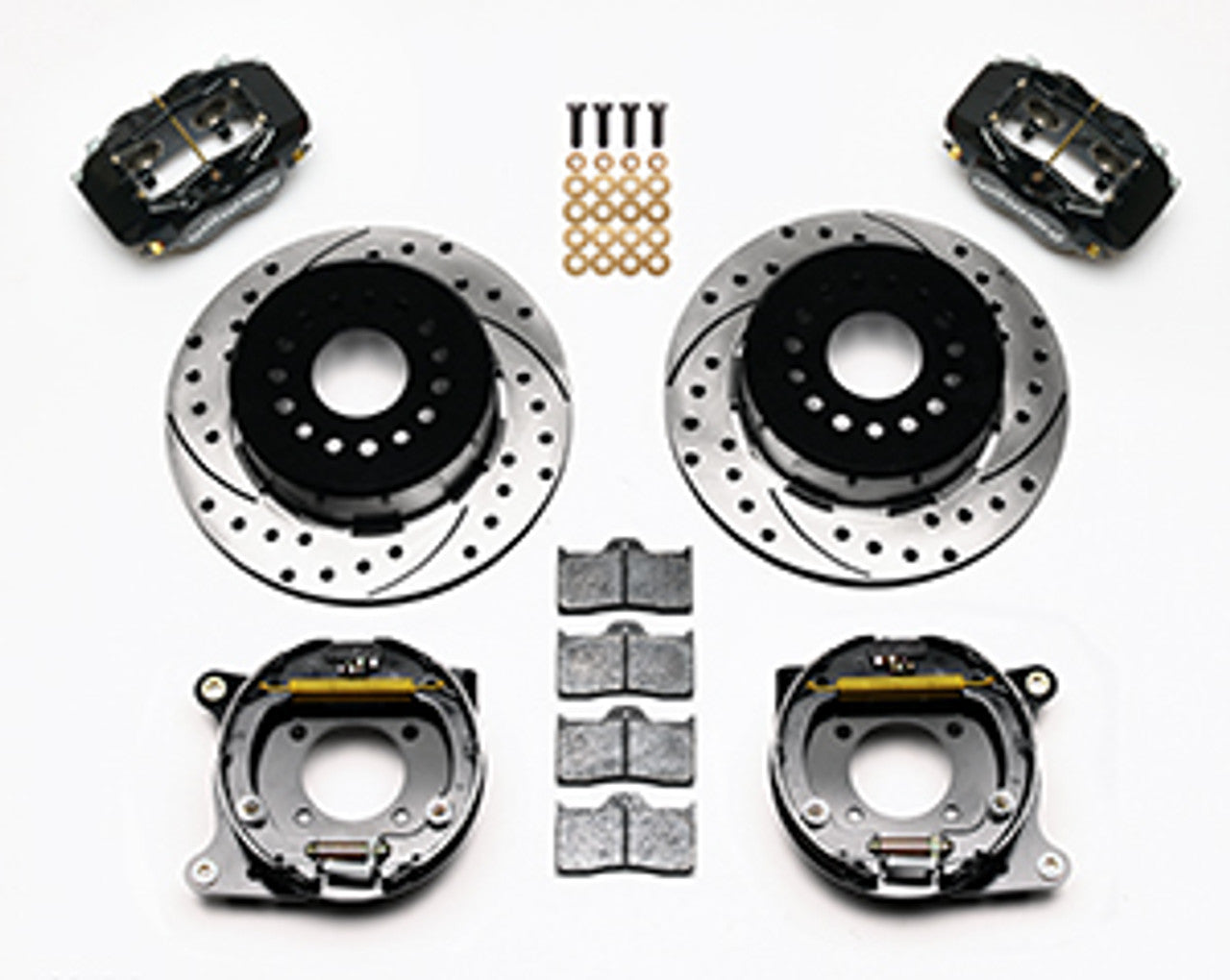

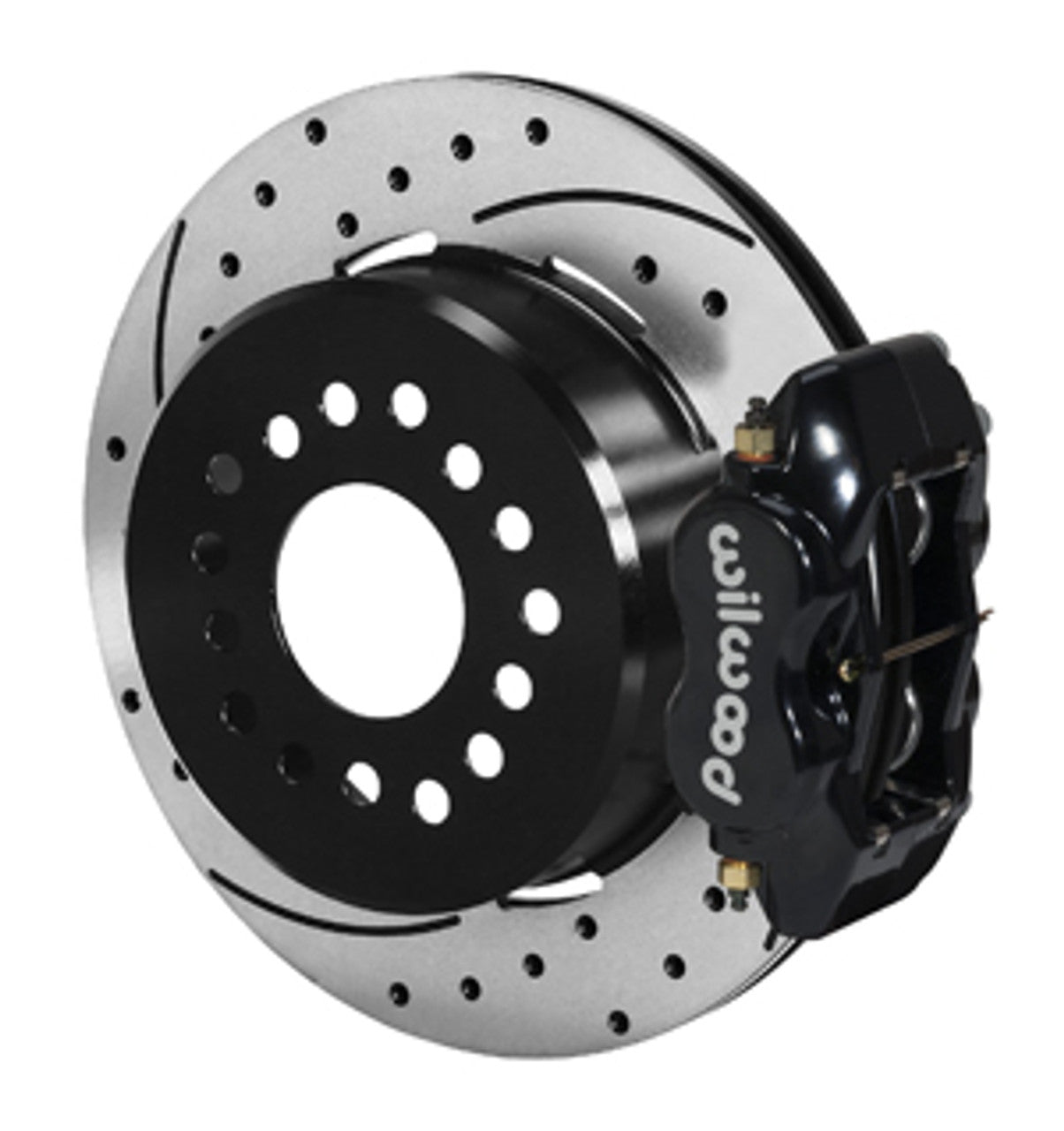

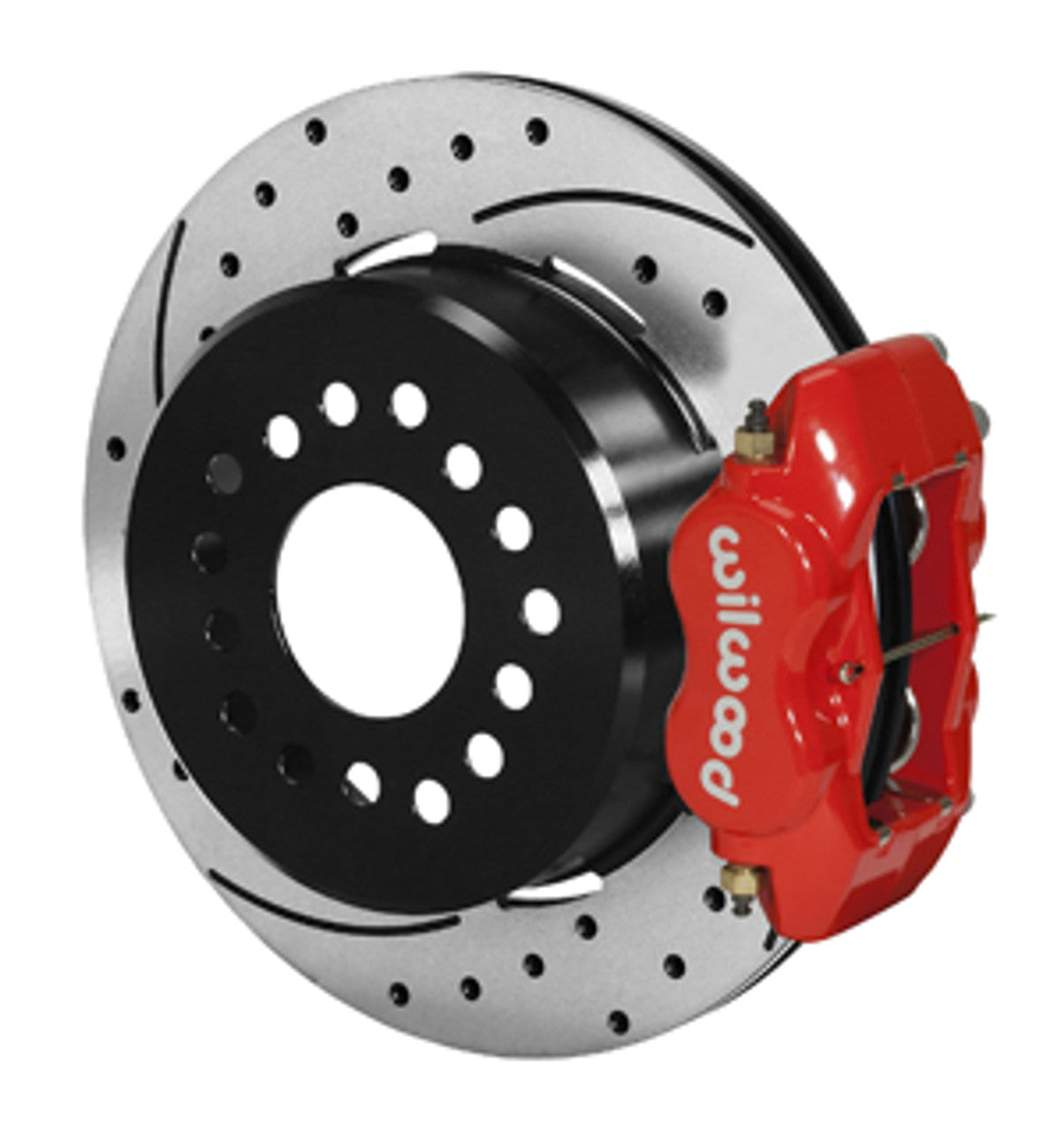

Wilwood Forged Dynalite Rear Parking Brake Kit 12.19" Drilled & Slotted (93-97 Camaro) 140-7148-D

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Kit Summary

Rear End Axle: 12 Bolt Late

Axle Offset: 2.75

Mount Type: Lug

Caliper Type: 4

Rotor Diameter: 12.19

Min Wheel Diameter Req'd: 15

Notes:

&#8226 Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

&#8226 Brake Line Kit Needed wilwood-220-6746

Application

&#8226 Chevrolet Camaro 1993-1997 Disc Brake Rear

&#8226 Chevrolet Camaro 1993-1997 Drum Brake Rear

&#8226 Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Disc Rear

&#8226 Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Drum Rear
