Wilwood Dynapro Low-Profile Rear Parking Brake Kit 11" (93-97 Camaro) 140-11399

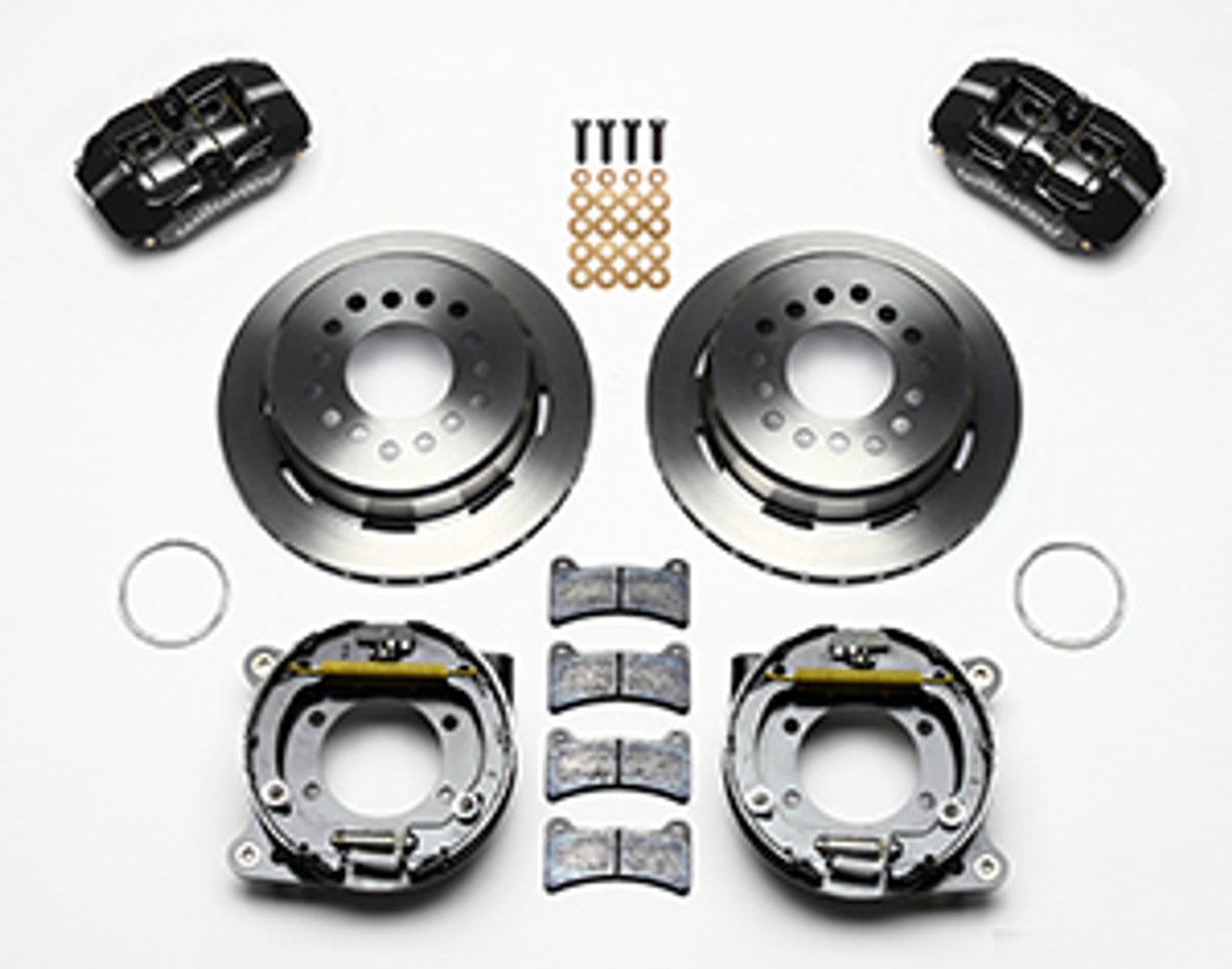

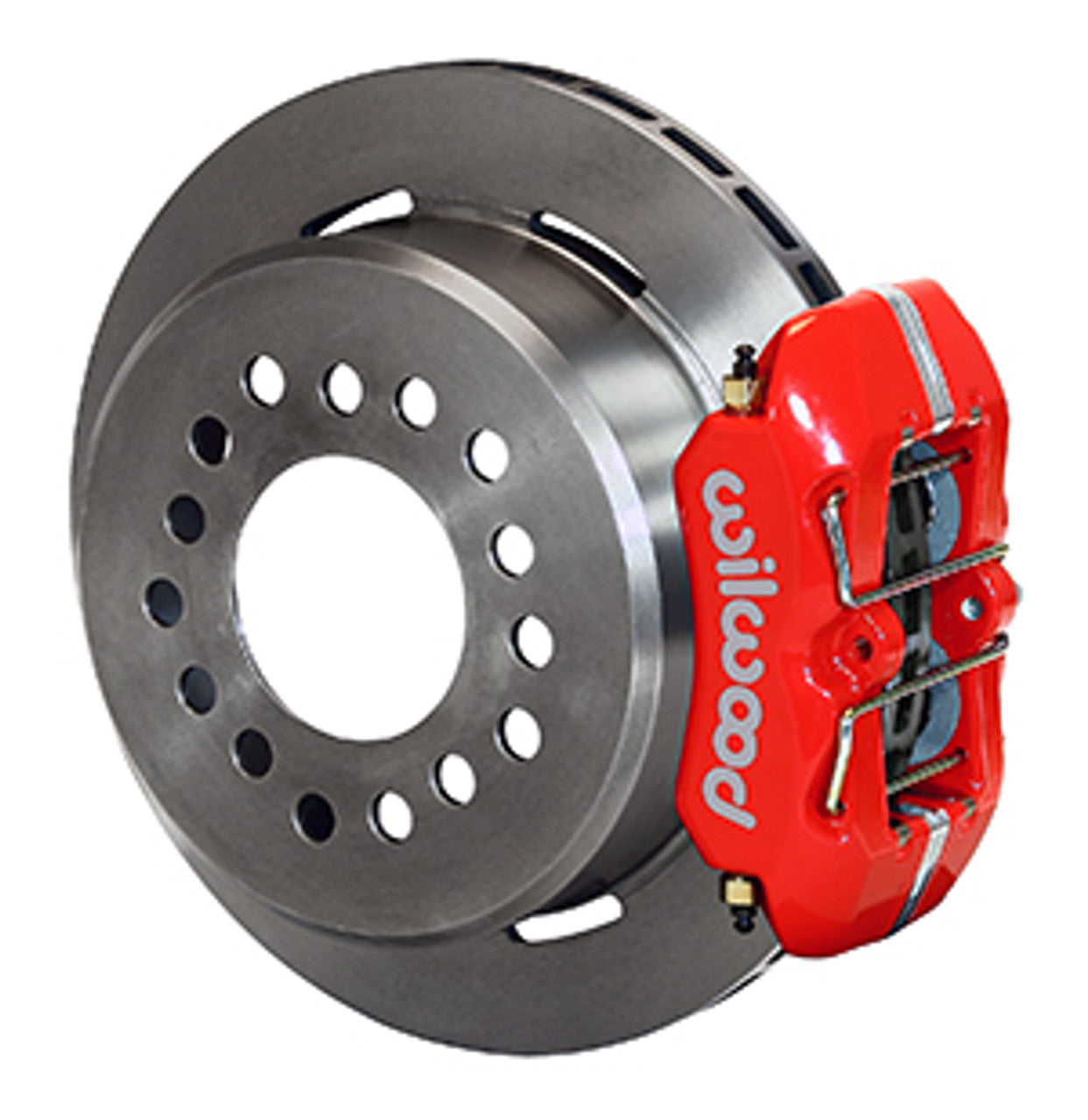

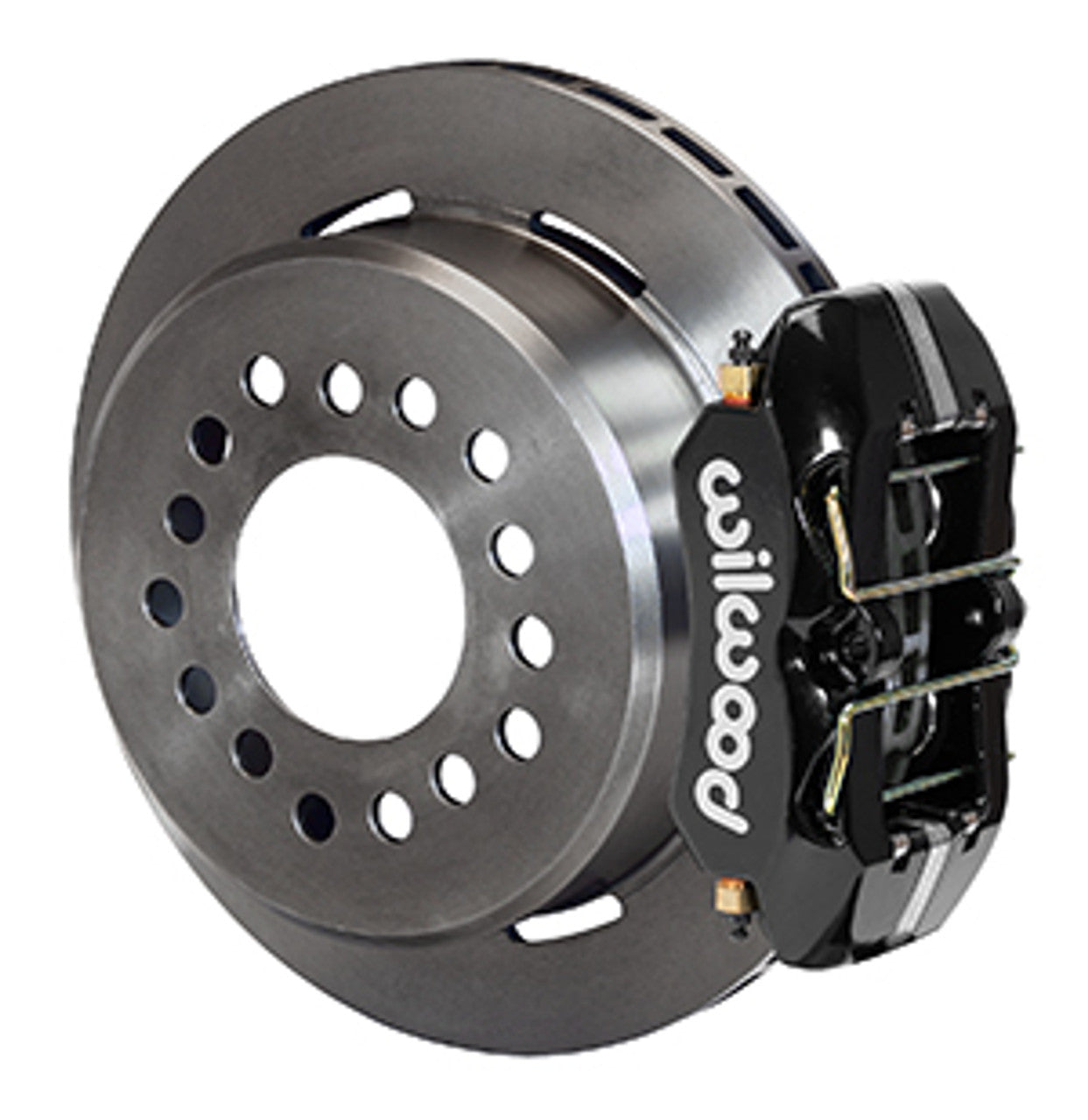

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.



Kit Summary

Rear End Axle: 12 Bolt Late

Axle Offset: 2.81

Mount Type: Lug

Caliper Type: 4

Rotor Diameter: 11

Min Wheel Diameter Req'd: 14



Notes:

&#8226 Kit may fit some 14" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

&#8226 Brake Line Kit Needed wilwood-220-6746



Application

&#8226 Chevrolet Camaro 1993-1997 Disc Brake Rear

&#8226 Chevrolet Camaro 1993-1997 Drum Brake Rear

&#8226 Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Disc Rear

&#8226 Chevrolet Camaro 1993-1997 w/ conversion to 1998-2002 F-Body spindles. Drum Rear
