Terminator X w/ Bosch EV1 Connector Early Ignition NO Drive-by-Wire (2013 - 2015 Ford Coyote w/ TI-VCT) 550-1212

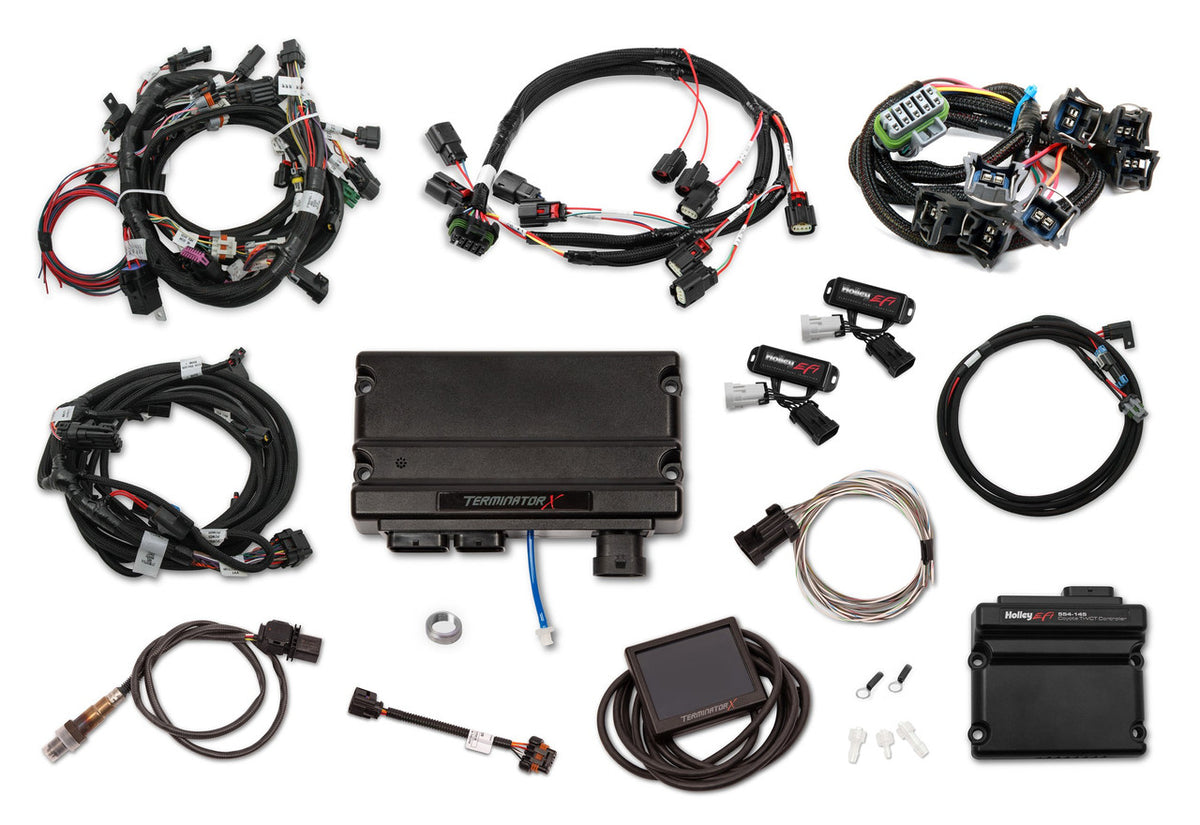

Holley EFI Terminator X Engine Control Unit

The Terminator X ECU is designed to support the Ford Coyote platform with Ti-VCT (Twin Independent Variable Camshaft timing). It features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs, making it ideal for electric fans, boost control solenoids, progressive nitrous control, and more.

The Terminator X ECU comes pre-loaded with base maps for common Coyote engine configurations, allowing you to get your vehicle running quickly. The included 3.5" LCD touch screen handheld provides an easy-to-use calibration wizard, as well as tuning and gauge display functionalities. Holley EFI's industry-leading software suite is also included, offering full laptop access and compatibility for advanced users.

The Terminator X offers a powerful and cost-effective solution for both budget builds and full-race applications, providing advanced features and technology without breaking the bank.

Specifications:

• Injector Connector: Jetronic / Minitimer (Bosch EV1)
• Year Range: 2013-2015
• Transmission: None
• Ignition Coil Type: Early
• Drive-By-Wire: No

Key Features:

• Plug and play engine control for Ford 5.0L Coyote with Ti-VCT
• Compatible with Holley EFI accessories (gauges, shift lights, modules, Pro Dash)
• EV1 or EV6 injector harness included
• High Impedance Injector drivers (supports Holley EFI and most stock injectors; does not support low impedance injectors)
• Includes Bosch LSU 4.9 wideband O2 sensors
• Built-in 1bar MAP sensor (can be disabled for external MAP sensor)
• Includes vacuum hose adapters (1/8”, ¼”, and 3/16” sizes)
• 4 inputs: 12v, Ground, 5v, and frequency
• Advanced Boost Control (boost vs. time, gear, RPM, speed, and safeties)
• Nitrous Control (wet or dry, progressive or non-progressive, safeties, target AFR)
• Advanced Tables (4x 1D, 1x 1D gear, 4x 2D, 1x 2D gear tables)
• On-board diagnostic LEDs for ECU power, engine run, TPS calibration, cam signal, etc.
• 3.5" touchscreen handheld with internal data-logging, custom gauge display, and calibration wizard
• Compact ECU dimensions: 7.45" x 4.1" x 1.66" (XMAX ECU: 9.6" x 4.1" x 1.66")
• FREE EFI Tuning software
