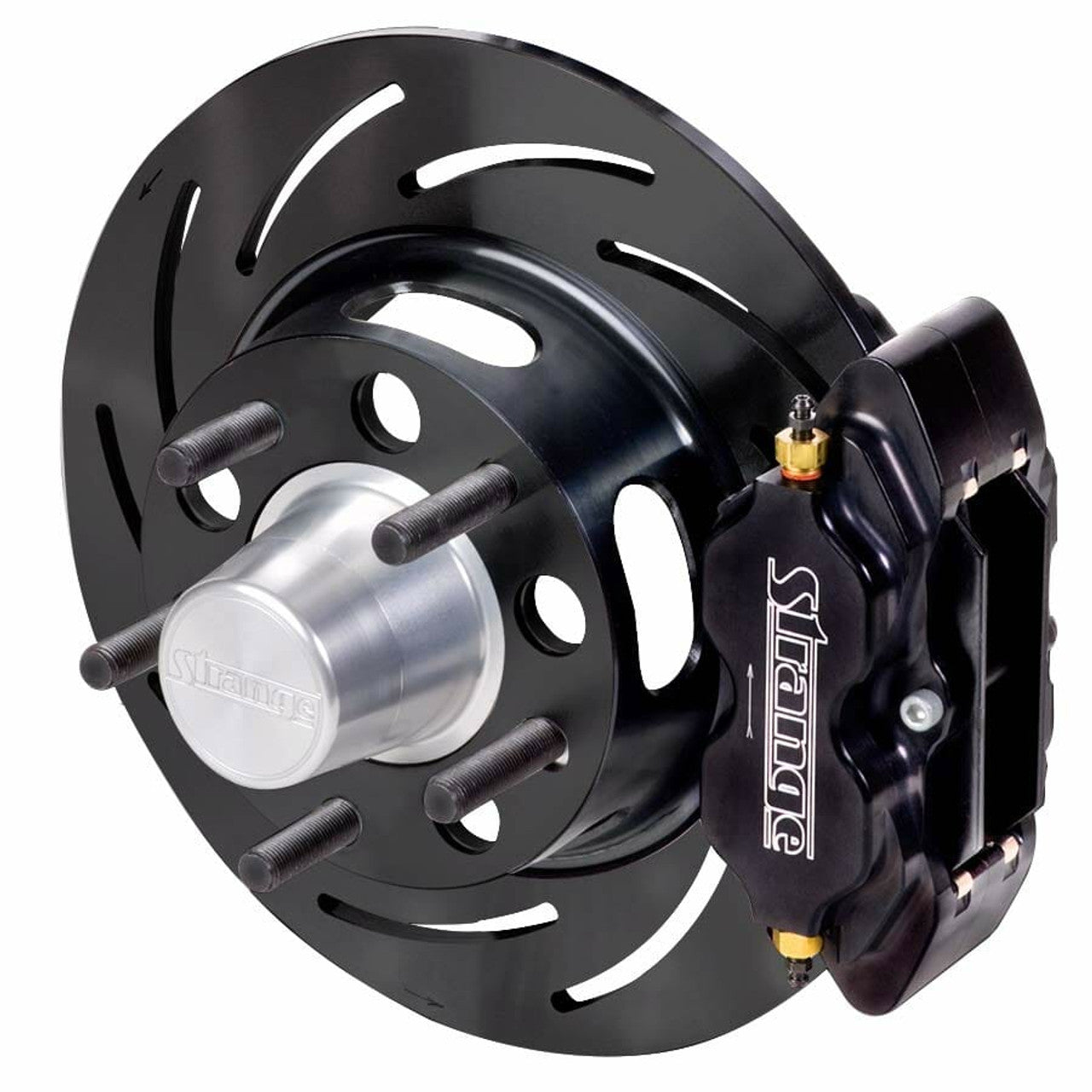

Strange Engineering Pro Series Drag Race Front Brake Kit 4 3/4" BC - 1-Piece Rotors (1993 - 2002 Camaro / Firebird) - B4180WC

Designed Specifically For Drag Racing
Application
1993-2002 Camaro / Firebird / Trans Am

Requires Some Modifications
See instruction sheet for further information

One Piece Forged Steel Rotors – B2795 / B2796
• Directional slots increase air flow and reduce weight
• One piece design eliminates bolts & safety wire
• Hat section drilled & milled to further reduce weight

Four Piston Directional Calipers – B5002 / B5004
• Aluminum bodies drastically reduce weight
• 1.625″ & 1.750″ pistons vary pressure decreasing pad taper
• Stainless steel pistons resist corrosion
• Anti-rattle clips reduce brake pad vibration and noise

DTC-30 Semi Metallic Brake Pads – B5010
• Best compound suited for front application
• Excellent cold holding capabilities

Aluminum Caliper Mounts
• Billet one piece design
• Eliminates bolts, spacers & nuts that require periodic maintenance

Billet Aluminum Hubs
• Strong lightweight material
• Lightening holes for enhanced weight reduction
• Billet hub caps with O-rings
• Bearings, races and seals

Stainless Steel Spindles
• Includes billet aluminum adapters
• Adapts spindles to OEM upright

Screw-in Wheel Studs – A1028
• Tapered allen 1/2″-20 x 2 1/2″
• Standard allen in 3″ available on request

All Necessary Mounting Hardware

Brake Hoses and Lines Are Not Included
Calipers are tapped 1/8″ NPT and supplied with a straight male 3 AN fitting

Use Teflon® tape or liquid on the pipe threads of the fitting
Leave a few threads from the tip uncoated
This will avoid depositing material inside the caliper
Torque fitting to 25 ft lbs

Fitment:
1993 Chevrolet Camaro
1994 Chevrolet Camaro
1995 Chevrolet Camaro
1996 Chevrolet Camaro
1997 Chevrolet Camaro
1998 Chevrolet Camaro
1999 Chevrolet Camaro
2000 Chevrolet Camaro
2001 Chevrolet Camaro
2002 Chevrolet Camaro

1993 Pontiac Firebird
1994 Pontiac Firebird
1995 Pontiac Firebird
1996 Pontiac Firebird
1997 Pontiac Firebird
1998 Pontiac Firebird
1999 Pontiac Firebird
2000 Pontiac Firebird
2001 Pontiac Firebird
2002 Pontiac Firebird
