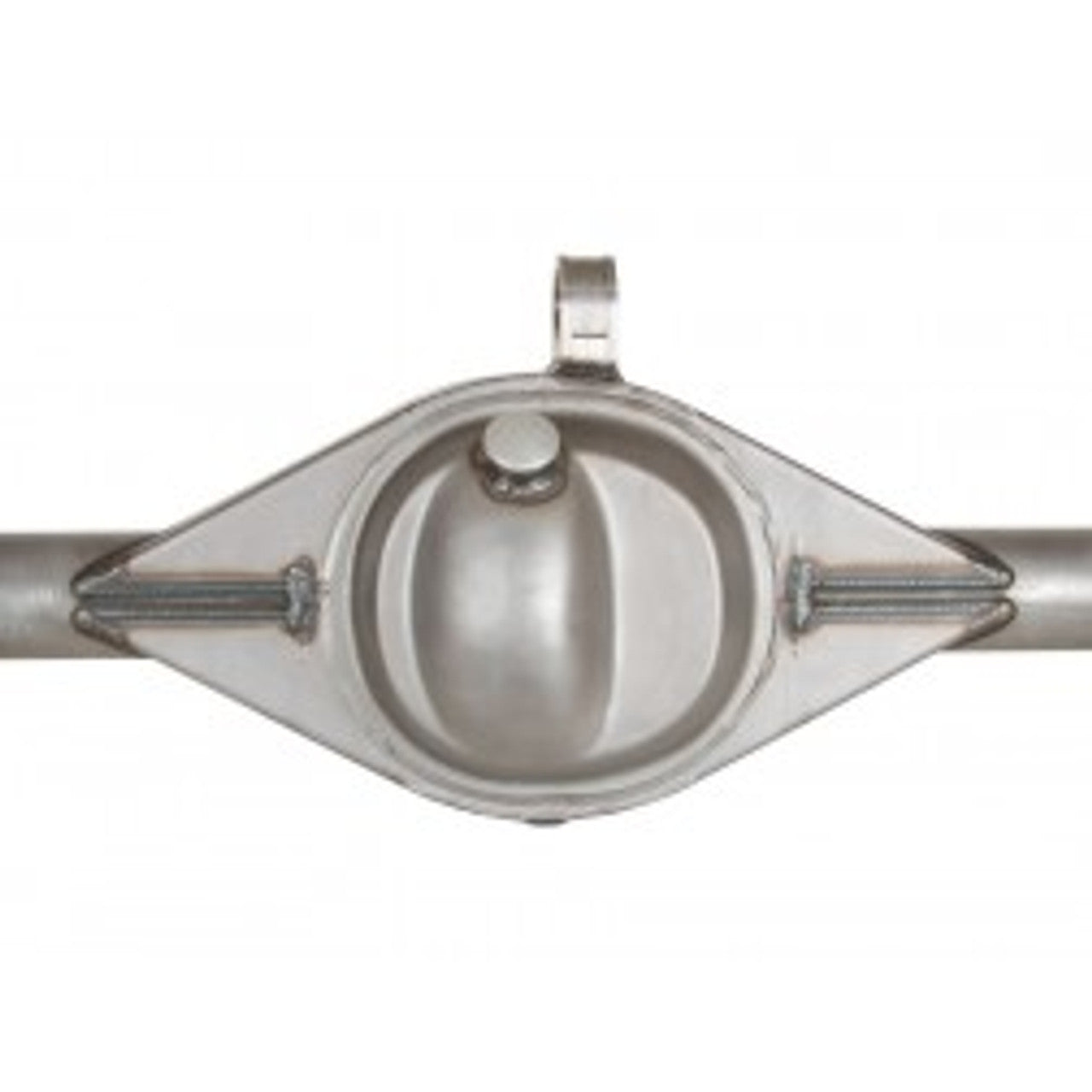

Strange 2005-2014 Mustang/Cobra Jet 9" Ultra Fab Housing - With Ends and Mounts HF9M05MEUF

Strange Engineering 9" Ultra Fab Housing for 2005+ Mustang and Cobra Jet.

Includes ends and mounts.

Ultra Fabricated housing centers are constructed from .125” alloy steel
with a heavy duty .375” face plate. Triangulated design provides rigid
housing tube support for more consistent and straighter launches. Internal radial gusset plates brace end of housing tube and increase overall housing stiffness. Tube insertion locations are slotted for 5” to allow complete and secure welding of the tubes to the housing. The housing is designed to provide the clearance necessary for cases with heavy duty main caps and also allowing the use of 9”, 9 1/2”, or 10” gear sets

The housing is fitted with fill and drain plugs, tubed with your choice of .250” wall 3” or 3 1/4” mild steel tubing, and choice of mounts and housing ends. While larger tubing is stronger, your mounts selection may have determined tube diameter. This configuration is the safest way to maintain the proper alignment of the housing ends. The fixturing and welding of the housing ends is always our last operation. For vehicles that will see very hard launches, there is an option to weld a back brace along the rear of the housing. It is designed to eliminate housing and tube flex that can occur under harsh conditions.

Includes: 3 1/4 OD tubes, fill & drain, and upper and lower control arm mounts, coil spring mounts in factory location, and housing ends.

ByePolr Performance is an Authorized Dealer for Strange Engineering Components,
