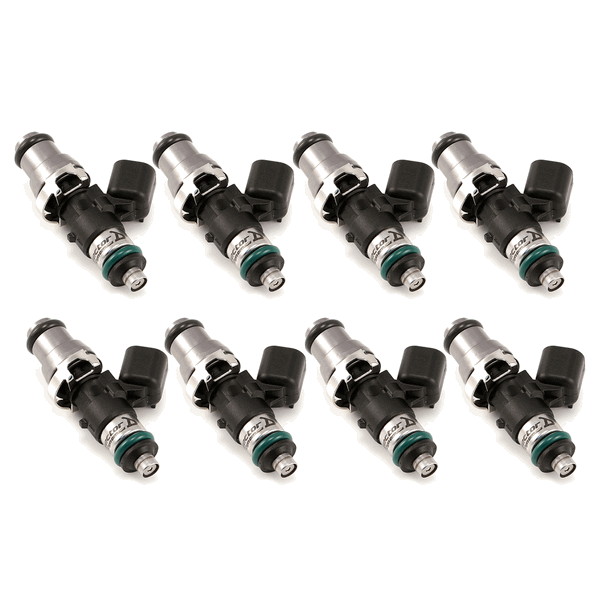

Injector Dynamics ID1050-XDS (1988 - 2010 Mustang GT / Ford / Camaro / BMW) 1050.60.14.14.8
Regular price
$1,092.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch

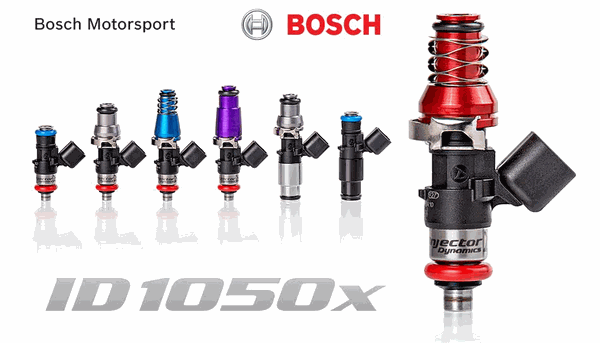

The Injector Dynamics ID1050-XDS is the latest addition to the X Series, a line of injectors designed and built in partnership with Bosch Motorsport. The X Series injectors are not modified production parts, they are a true motorsport injector!It is a built to spec motorsport injector, offering optimization of critical operating parameters important to you, the motorsport tuner.
Applications
Ford 1988-2010 Mustang (Requires Injector Dynamics DENSO to USCAR Fuel Injector adapter set of 8 on the )
SVT Lighting, F-150 Harley Davidson
SVT Raptor 2011+
Chevy 1993-2001 Camaro
LT1,LS1,LS6
BMW 540i/740i
Features
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Specifications
Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
Beefcake Racing is an Authorized Dealer for Injector Dynamics, call 1-855-827-7223 for more info.
Applications
Ford 1988-2010 Mustang (Requires Injector Dynamics DENSO to USCAR Fuel Injector adapter set of 8 on the )
SVT Lighting, F-150 Harley Davidson
SVT Raptor 2011+
Chevy 1993-2001 Camaro
LT1,LS1,LS6
BMW 540i/740i
Features
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Specifications
Nominal Flow Rate – 1065cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 10.0 Bar (145.0 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
Beefcake Racing is an Authorized Dealer for Injector Dynamics, call 1-855-827-7223 for more info.
