Comp Cams Coyote Valve Spring Kit 0.600" Max Lift Titanium Retainers (11-17 Mustang GT) 26125CTI-KIT
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Comp Cams 2011-2016 Mustang Coyote 5.0L Valve Spring Kit 0.600" Max Lift (Titanium Retainers) 26125CTI-KIT
Creates higher load, higher RPM & more lift capacity than stock parts.

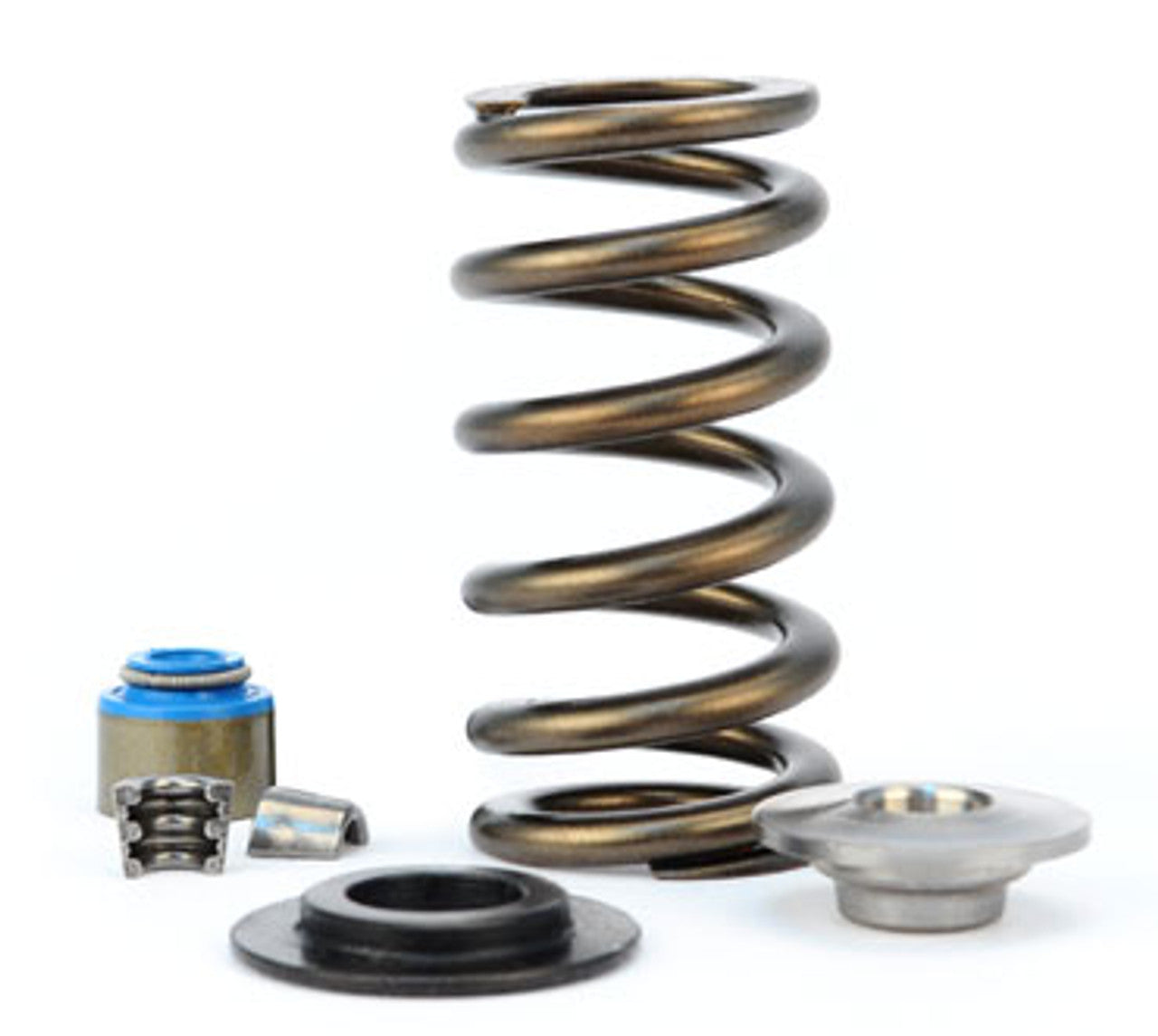

Complete kit; includes (32) springs, (32) retainers, (32) seats, & (32) seals.
Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design & proven modular engine track record.
Fits 2011-2014 & 2015-Later; Ford Coyote & Boss 5.0L engines.
Specifications
MAX LIFT .600"
SEAT LOAD 120 lbs @ 1.57"
OPEN LOAD 275 lbs @ 1.02"
RATE 258 lbs/in
COIL BIND .970"
OUTER DIAMETER Top 1.013" / Bottom 1.101"
INNER DIAMETER Top .650" / Bottom .738"
Shop All 2011-2016 Mustang Comp Cams at Beefcake Racing.
