Comp Cams Coyote Valve Spring Kit 0.550" Max Lift (11-17 Mustang GT) 26113CY-KIT

Creates higher load, higher RPM & more lift capacity than stock parts.

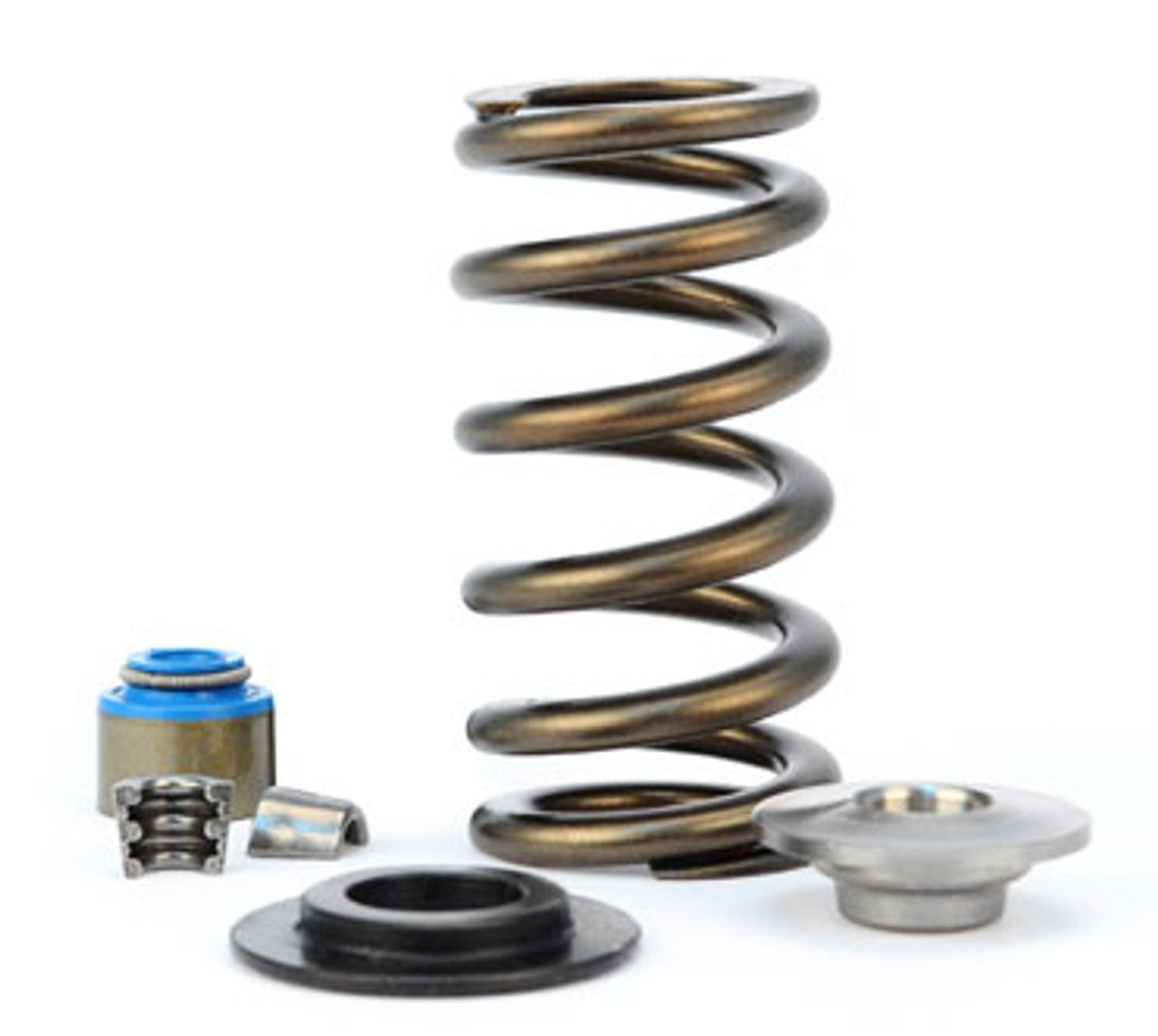

Complete kit; includes (32) springs, (32) retainers, (32) seats, & (32) seals.

Increased valve control over stock springs (especially at high RPM) thanks to a performance-driven design & proven modular engine track record.

Fits 2011-2014 & 2015-Later; Ford Coyote & Boss 5.0L engines.

Specifications

MAX LIFT .550"

SEAT LOAD 93 lbs @ 1.57"

OPEN LOAD 198 lbs @ 1.02"

RATE 191lbs/in

COIL BIND .952"

OUTER DIAMETER Top .959" / Bottom 1.061"

INNER DIAMETER Top .636" / Bottom .738"
